Marine Porthole Window

Durable and Water-Resistant

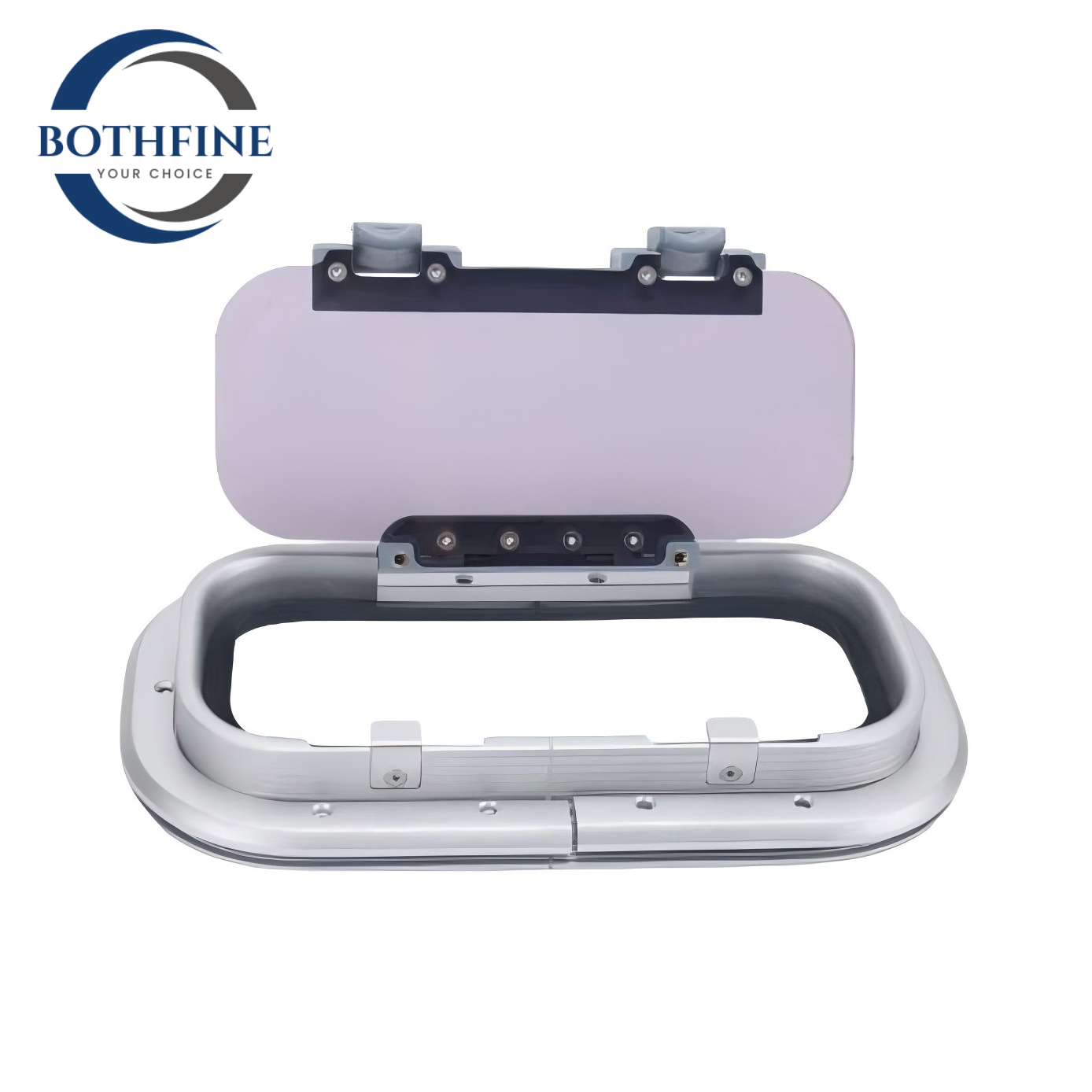

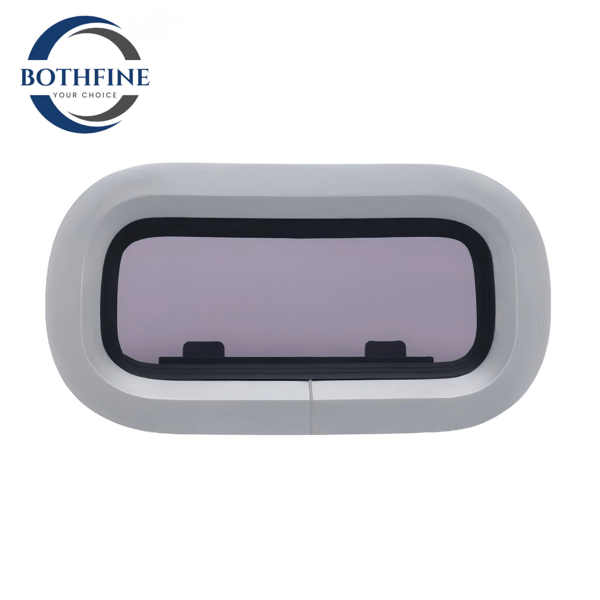

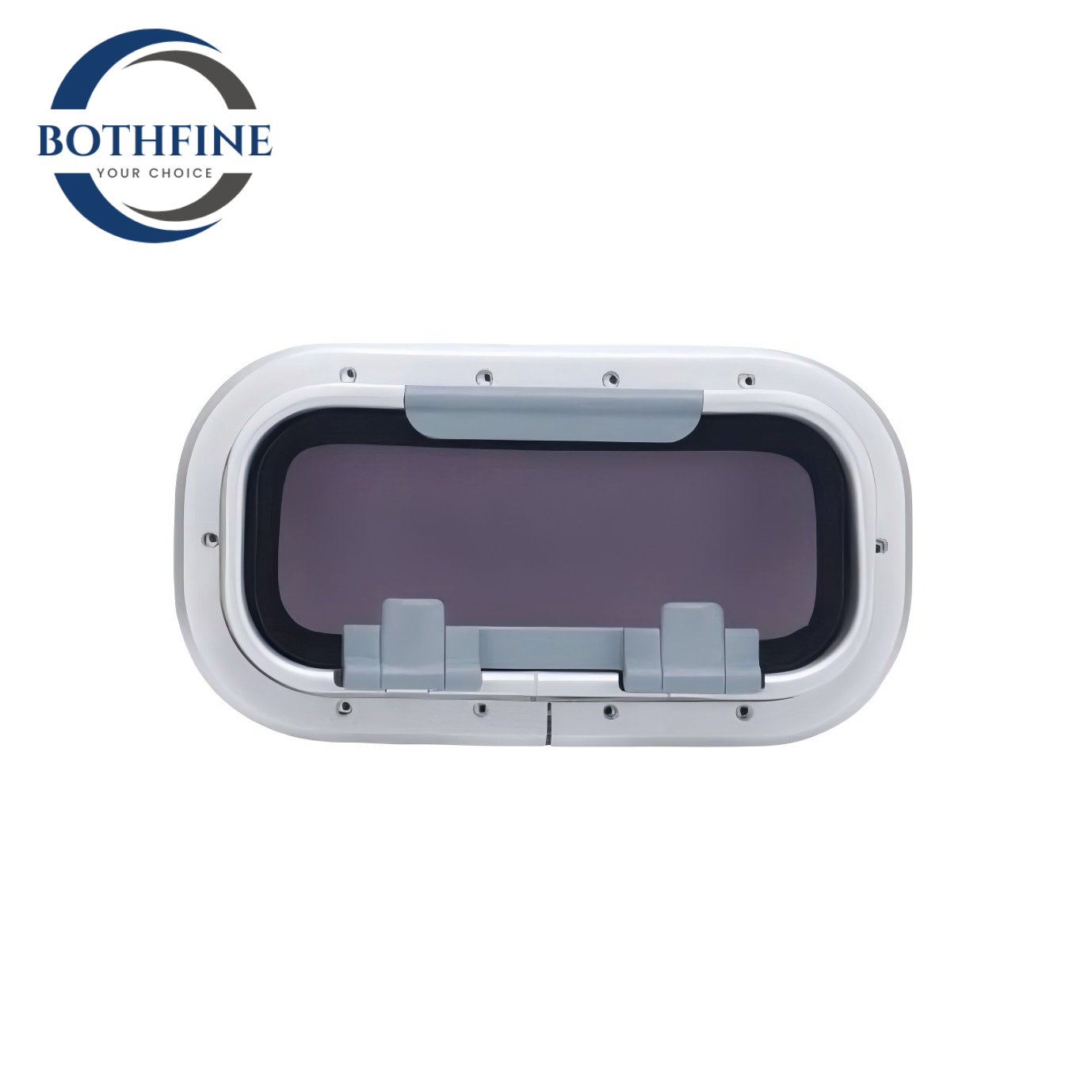

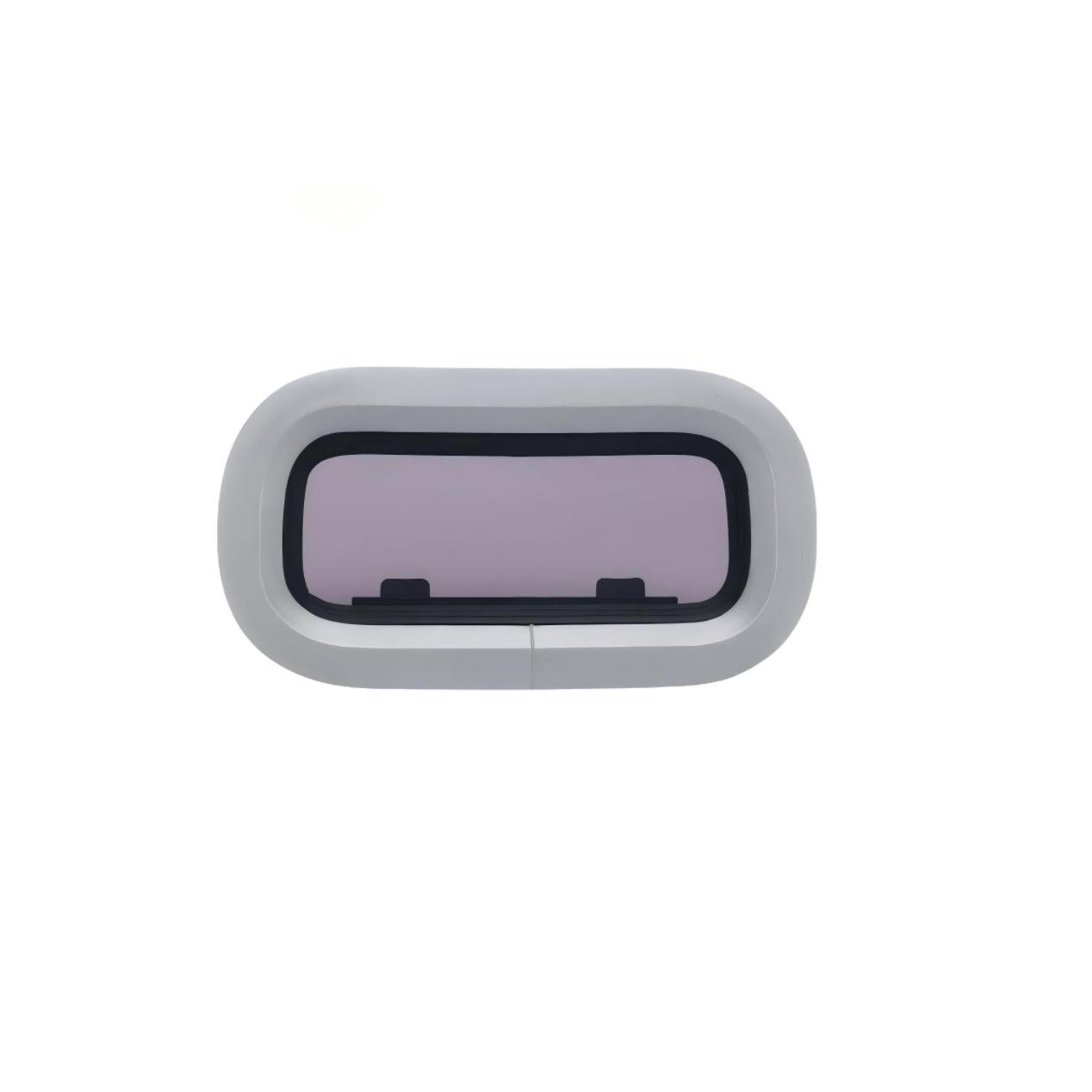

Introducing our premium Marine Porthole Window, meticulously crafted for boats and nautical settings.

- Made of anodized aluminium and fitted with smoked tempered glass lens, CE approved.

- The most widespread portlight worldwide for sailing boats, thanks to its high quality finish. Fitted with built-in fiction levers,       quick and safe locking.Supplied with white ABS trimming ring (ivory colour available upon request), it includes mounting screws   and flyscreen,smoked glass.Easily fitted by clamping the cabin sides between inner and outer frame with screws provided, that are   fastened into the outer frame.

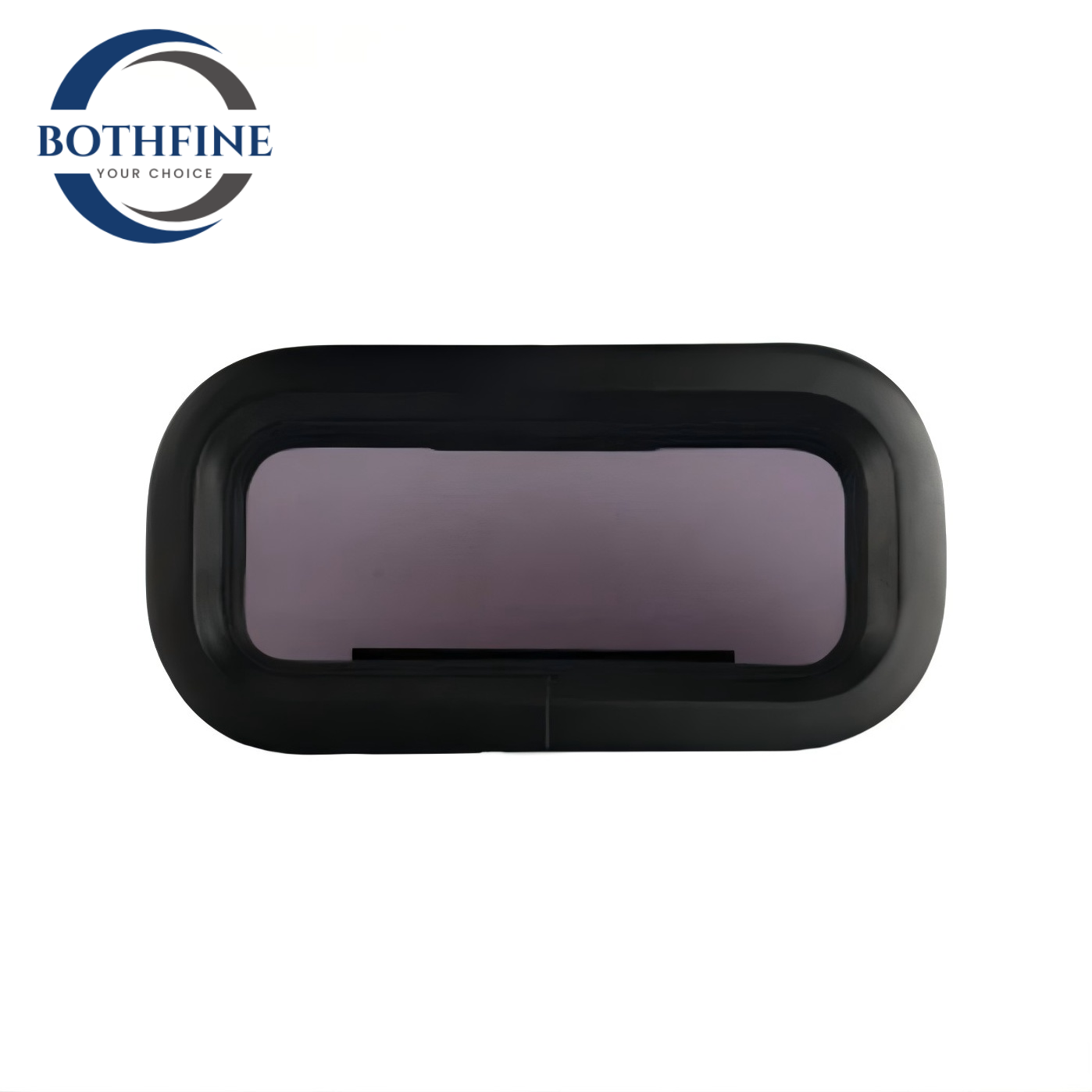

- The product is available in black.

This exceptional porthole window boasts a sturdy, water-resistant frame designed to withstand the harsh marine environment.

The tinted glass pane not only ensures your privacy but also provides superior UV protection, making it a perfect addition to your vessel.

Available in multiple sizes to suit different boat configurations and in a sleek, classic nautical color to match your style.

Part No.

Handle Quantity

Cut-out Dimensions
mm

External Dimensions
mm

Overall Height

mm


Deck Thickness
mm

9505AA00

156*303

178*325

44

27

9505AA01

171*347

193*369

44

27

9505AA02

156*405

178*427

44

27

9505AA03

171*429

193*451

44

27

9505AA04

171*627

193*649

44

27

9505AA05

244*429

266*451

44

27

9505AA06

251*347

273*369

44

27

Enhance your marine experience with this top-of-the-line porthole window, ideal for both modern and traditional boat designs.
